CHANGSHA, HUNAN, CHINA, October 27, 2026 /EINPresswire.com/ — # Magnetic Bead DNA Extraction: Workflow, Benefits, and Troubleshooting

Magnetic bead DNA extraction is a method that uses paramagnetic particles to capture DNA from a lysed sample, separate it with a magnet, wash away impurities and release purified DNA in a small volume of buffer. Because it needs no centrifugation or vacuum steps and is easy to automate, it has become a standard approach for research laboratories, molecular diagnostics and high-throughput genomics workflows.

This guide explains how magnetic beads for DNA extraction work, walks through the workflow step by step, compares the method with spin column techniques, covers factors that affect yield and purity, and explains how to troubleshoot common problems and choose suitable reagents. For laboratories seeking a ready-to-use option, the Magnetic Universal DNA Kit provides a general-purpose solution based on magnetic bead technology.

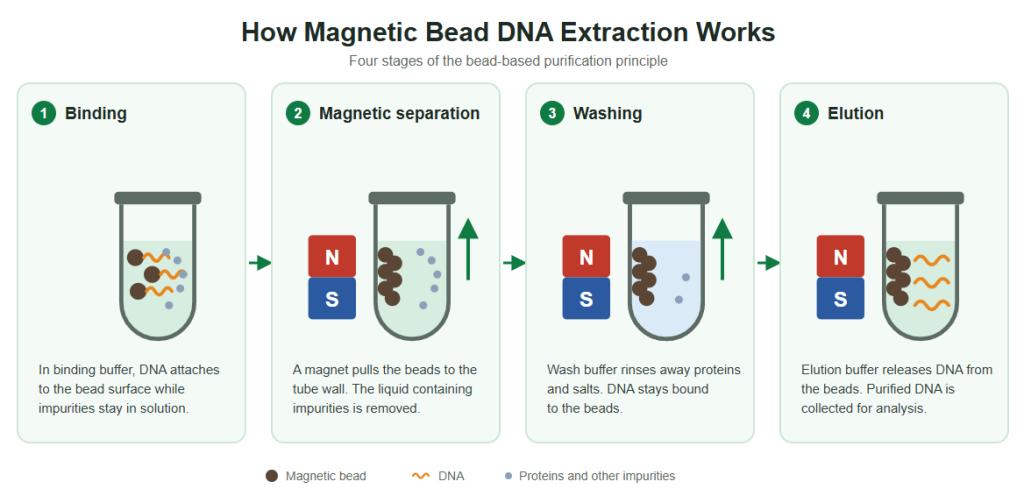

## How Does Magnetic Bead DNA Extraction Work?

The method relies on a simple principle: under the right buffer conditions, DNA binds reversibly to the surface of magnetic beads. A magnet holds the beads in place while unwanted materials are removed.

**Binding:** After the sample is lysed, a binding buffer is added. In many silica-based systems, chaotropic salts and alcohol promote DNA binding to the bead surface. Other systems use carboxyl-coated beads with polyethylene glycol (PEG) and salt to facilitate DNA binding.

**Magnetic separation:** A magnet pulls the beads, together with the attached DNA, to the side or bottom of a tube or well. The remaining liquid, which contains proteins, salts and other contaminants, is removed.

**Washing:** The beads are washed, usually with an ethanol-based buffer, to remove residual impurities while the DNA remains attached.

**Elution:** The beads are resuspended in a low-salt elution buffer or water to release the DNA. A magnet then holds the beads back while the purified DNA is transferred.

The beads are small superparamagnetic particles that respond strongly to a magnetic field but do not remain magnetized after the field is removed. This allows them to be resuspended evenly and used through repeated mixing and separation cycles. For kit developers and laboratories that need the particles themselves, magnetic microspheres can serve as the solid phase for nucleic acid extraction and purification.

## Step-by-Step Magnetic Bead DNA Extraction Workflow

A typical workflow includes seven stages. Exact volumes, incubation times and temperatures depend on the kit, sample type and instrument.

### Step 1: Sample Lysis

A lysis buffer disrupts cell membranes and releases DNA. Depending on the sample, lysis may involve detergents, chaotropic salts, mechanical disruption or enzymatic pretreatment. For tissue samples, the Magnetic Fast Tissue DNA Kit provides a dedicated extraction option.

### Step 2: Protein Digestion

Proteinase K is commonly added during lysis to digest proteins, release DNA from protein complexes and reduce nuclease activity. Its use depends on the sample type and protocol. Protein digestion is particularly relevant when processing blood or tissue samples with substantial protein content.

### Step 3: DNA Binding to Magnetic Beads

The lysate is mixed with magnetic beads and binding buffer. Thorough mixing and sufficient binding time allow DNA to attach to the bead surface. General-purpose kits commonly follow this lysis, binding, washing and elution sequence for routine sample types.

### Step 4: Magnetic Separation

The tube or plate is placed on a magnetic stand, allowing the beads to collect against the wall. The supernatant is carefully removed without disturbing the collected beads, helping prevent DNA loss.

### Step 5: Washing

Two or more washing steps may be used to remove proteins, salts and other contaminants. Ethanol-based washes are common. Complete removal of residual ethanol is important because it can interfere with downstream reactions.

### Step 6: Drying

The beads are briefly air-dried to evaporate remaining ethanol. Over-drying can make DNA more difficult to elute, so the drying time should follow the validated protocol.

### Step 7: Elution

The beads are resuspended in elution buffer or nuclease-free water. After a short incubation, the beads are separated again, and the purified DNA is collected for PCR, qPCR, sequencing, genotyping or other downstream analysis.

## Magnetic Beads vs. Spin Columns

Both magnetic bead extraction and spin column methods can produce high-quality DNA. The most suitable option depends on sample volume, throughput, automation requirements and laboratory workflow.

Spin columns capture DNA on a membrane and typically rely on centrifugation or vacuum to move liquids through the membrane. They remain convenient for small batches and routine bench work.

Magnetic bead methods capture DNA in solution and use a magnet to separate the particles from the surrounding liquid. They are generally more suitable for automated workflows, flexible sample volumes and high-throughput processing. They can also reduce problems associated with column clogging when processing certain viscous or particulate samples.

Magnetic bead extraction offers several advantages. It is easy to automate, does not require centrifugation, supports processing in tubes or plates, and can produce concentrated DNA through low-volume elution. However, careless pipetting can cause bead loss, while residual ethanol, bead carryover and excessive drying may affect downstream performance. Highly viscous or protein-rich samples may also require additional pretreatment. Overall performance depends on selecting compatible beads, buffers and instruments.

## Key Factors That Affect Yield and Purity

Several factors influence DNA recovery and purity during magnetic bead extraction.

**Lysis efficiency:** Incomplete lysis reduces DNA yield. Tissue samples may need to be cut into smaller pieces or homogenized, while resistant samples may require longer digestion or additional pretreatment.

**Binding conditions:** Salt concentration, alcohol content, pH and the bead-to-sample ratio affect DNA binding. These conditions should follow the kit’s validated protocol.

**Mixing and binding time:** Beads must be fully resuspended during binding so that DNA can contact their surfaces. Several minutes of binding is common, although dilute samples may require longer incubation depending on the protocol.

**Magnetic separation:** The beads must be completely collected before the supernatant is removed. Separation time depends on bead properties, magnet strength and the sample format.

**Washing:** Sufficient washing removes contaminants that could affect DNA purity or downstream reactions. Residual ethanol must be removed completely.

**Drying:** Beads should be dried only long enough to remove residual ethanol. Excessive drying may reduce elution efficiency.

**Elution:** Elution volume, temperature and incubation time influence DNA recovery. Smaller volumes can increase DNA concentration but may reduce total recovery if the conditions are unsuitable.

## Magnetic Bead DNA Extraction for Different Sample Types

Magnetic bead extraction can be adapted to a range of biological samples, but each sample type presents different preparation requirements.

**Blood:** Blood contains proteins and may include anticoagulants that affect processing. Efficient lysis and appropriate protein digestion help support consistent genomic DNA recovery.

**Tissue:** Tissue should be cut or homogenized into small pieces and digested thoroughly. A dedicated option, such as the Magnetic Fast Tissue DNA Kit, is designed for tissue extraction workflows.

**Plasma and serum:** Cell-free DNA is often present at low concentrations and in short fragments. The extraction method must recover small amounts efficiently. The Magnetic Circulating DNA Kit is intended for circulating DNA applications.

**Swabs and saliva:** These samples may contain mucus, microorganisms and other substances that interfere with amplification. Appropriate lysis and washing help reduce contamination.

**Cultured cells:** Cultured cells are generally easier to lyse and can provide good DNA yields with relatively short protocols.

**Bacteria and fungi:** Their cell walls may require additional enzymatic or mechanical pretreatment before the standard extraction procedure.

## Magnetic Bead DNA Extraction in Automated and High-Throughput Workflows

Automation is a major reason magnetic bead DNA extraction is widely used in diagnostics and large-scale testing. Instruments can move beads between wells, mix samples, perform magnetic separation and carry out washing steps with limited operator intervention. This improves reproducibility and reduces hands-on time in clinical laboratories, screening programs and large cohort studies.

Several considerations are important when establishing an automated workflow. The beads and buffers must be compatible with the instrument and plate format. Processing speed depends on factors such as bead collection time and sample lysis efficiency. Consistency across wells, runs and operators is also essential.

Contamination control becomes particularly important when many samples are processed in parallel. Reagent stability and shelf life should be evaluated to ensure that extraction performance remains consistent throughout routine use.

## Troubleshooting Magnetic Bead DNA Extraction

Low DNA yield can result from incomplete lysis, insufficient binding time or bead loss during supernatant removal. Improving sample digestion, mixing beads thoroughly, extending binding when appropriate and removing liquid carefully can help address these problems.

A low A260/A280 ratio may indicate protein carryover. Protein digestion should be completed properly, and washing steps should be performed according to the protocol. A low A260/A230 ratio may indicate residual salts or ethanol. Additional or extended washing and complete ethanol removal may improve the result.

PCR or qPCR inhibition can occur when ethanol, salts or magnetic beads remain in the final eluate. Appropriate washing, brief drying and complete magnetic separation before collecting the DNA can help reduce interference.

Beads that clump or are difficult to resuspend may have been over-dried or insufficiently mixed. Shortening the drying step and resuspending the beads thoroughly can improve handling. If beads appear in the final eluate, allow more time for magnetic separation and collect the liquid carefully.

DNA degradation may result from nuclease activity, delayed lysis or harsh sample handling. Samples should be processed promptly, with unnecessary mechanical shearing avoided when DNA integrity is important. Variable results between runs may reflect inconsistent reagents or pipetting. Checking reagent lot consistency and using automated liquid handling where practical can improve reproducibility.

## How to Choose Magnetic Beads and Kits for DNA Extraction

For laboratories selecting an extraction kit, the best option is one validated for the intended sample type and throughput. For diagnostic reagent developers and kit manufacturers, magnetic bead selection is also an important part of product design.

**Binding capacity and recovery:** The beads should capture DNA efficiently across the expected range of input concentrations and sample volumes.

**Particle size and uniformity:** Consistent particle size supports predictable magnetic behavior and DNA-binding performance.

**Magnetic response:** Beads should separate quickly and completely while remaining easy to redisperse after the magnetic field is removed.

**Dispersion and stability:** The particles should resist aggregation and remain stable during storage and routine handling.

**Surface chemistry:** The bead surface must match the binding chemistry of the buffer system, such as silica-based or carboxyl-based chemistry.

**Purity and contamination control:** Residual nucleases and other impurities may affect DNA integrity and downstream assays.

**Lot-to-lot consistency:** A validated protocol should deliver comparable results when new reagent lots are introduced.

**Scale-up and supply:** Suppliers should support the transition from development to bulk manufacturing and provide reliable supply and relevant quality documentation.

## Hyasen Magnetic Bead Products for DNA Extraction

Hyasen offers magnetic bead products for different extraction requirements, from raw materials for kit developers to ready-to-use kits.

**Magnetic Microspheres** provide magnetic particles that can serve as the solid phase for nucleic acid extraction and purification.

**Magnetic Universal DNA Kit** is a general-purpose kit for DNA extraction using magnetic bead technology.

**Magnetic Fast Tissue DNA Kit** is designed for DNA extraction from tissue samples.

**Magnetic Circulating DNA Kit** supports circulating DNA extraction applications.

Refer to the individual product pages for specifications, applicable sample types and instrument compatibility.

## Frequently Asked Questions

### What Is Magnetic Bead DNA Extraction?

Magnetic bead DNA extraction is a method in which DNA binds to magnetic particles. A magnet holds the particles in place while impurities are washed away, after which purified DNA is eluted. The process does not require centrifugation and is suitable for automation.

### How Does Magnetic Bead Extraction Differ from Spin Column Extraction?

Spin columns capture DNA on a membrane and typically use centrifugation or vacuum to move liquids through it. Magnetic beads capture DNA in solution and use a magnet for separation, making them suitable for automation and flexible sample volumes.

### Is Magnetic Bead DNA Extraction Better Than Column-Based Methods?

The best method depends on the application. Magnetic beads are generally preferred for high-throughput and automated workflows, while spin columns remain convenient for small batches and routine bench work.

### Is Proteinase K Necessary for Magnetic Bead DNA Extraction?

Not always. Proteinase K is commonly used during lysis for protein-rich samples, such as blood and tissue, because it digests proteins and helps reduce nuclease activity.

### What Causes Low DNA Yield with Magnetic Beads?

Common causes include incomplete lysis, insufficient binding time or mixing, bead loss during supernatant removal and excessive drying before elution.

### Why Are Ethanol or Beads Present in the Final Eluate?

Residual ethanol usually indicates incomplete removal of the wash buffer, while bead carryover suggests insufficient magnetic separation. Allow adequate drying and separation time before collecting the eluate.

### Can Magnetic Bead Extraction Be Used for Circulating DNA?

Yes. Magnetic bead methods are widely used for cell-free and circulating DNA when the protocol is designed to recover low concentrations of short DNA fragments efficiently.

### Can the Same Beads Be Used for DNA and RNA?

Some bead chemistries can bind both DNA and RNA, but the buffers and processing steps may differ. The protocol should be designed or validated for the target nucleic acid.

### What Should Manufacturers Consider When Sourcing Magnetic Beads?

Important considerations include binding capacity, particle uniformity, magnetic response, dispersion, surface chemistry, purity, lot-to-lot consistency and supply capacity.

## Conclusion

Magnetic bead DNA extraction offers a fast, scalable and automation-friendly method for obtaining DNA from a wide range of samples. Reliable results depend on efficient lysis, suitable binding and washing conditions, careful magnetic separation and the selection of appropriate beads and reagents for each application.

Laboratories and product developers seeking magnetic beads or DNA extraction kits can contact Hyasen to discuss sample requirements, technical specifications, bulk supply and customized solutions.
